Steps in Installing VintageView Metal Wine Racks

View our Metal Wine Racks photos at Pinterest now!This instructional video will cover the basics of installing VintageView Metal Wine RacksWS Series Racks.  To begin, measure the width of

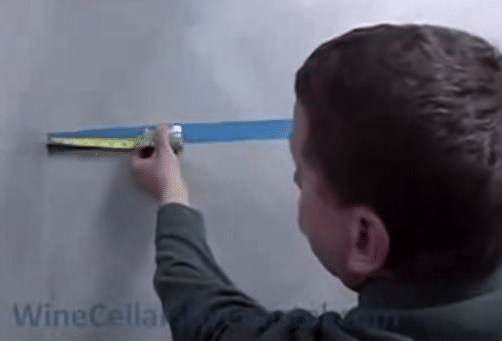

Assembled Metal Wine Racks - Measuring the Wall

Click here to view Metal Wine Racks in Contemporary Wine Cellars

your wall and determine your starting point whether you want to work from the middle out or from one side to the other.

Either way, you will need to allow a minimum of 2 ¾” from any adjacent walls to the center line of the first strip.  From there, measure 7 ½” to the center line of the next strip.  If installing multiple columns, mark 5 ½” over from the center line of the next strip.

See more pictures of VintageView Metal Wine Racks here!

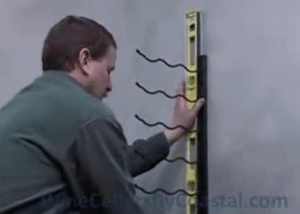

VintageView Metal Wine Racks – Installing the First Strip

Repeat the pattern marking off 7 ½” and 5 ½” for all of your remaining columns.  Once your wall is marked off install the first strip.

You may use either a base or an X strip to start with as this determines the direction the necks of the bottles will point.  Ensure that each strip is plum or vertical before securing to the wall.

In this installation we have a wood backing to screw into.  However, if you’re attaching directly into dry wall we recommend the use of appropriate anchors such as spiral inserts.

This type of anchor screws into the wall and allows you to tighten the screw into the pre-drilled hole as demonstrated here.  If you’re going to stack racks remove the installed unplug and replace it with one of the provided couplers.

You will also need to remove the unplug from the bottom of the metal wine racks being installedabove and then slide the rack into position onto

Check out our VintageView Metal Wine Racks in Pinterest!

Couplers for Assembling Metal Wine Racks

the coupler.  These couplers ensure that your racks are properly aligned during installation.  Once the upper metal wine racks are in proper position securely fasten them in place.

All that’s left to do is snap the provided mounting hole covers into place to finish the installation.  Just load the racks, stand back, and enjoy the Vintage View Los Angeles CA assembled wine racks.
